JB 3060

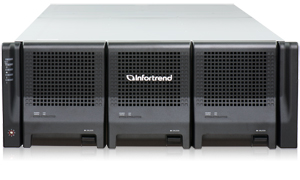

JB 3060 (Legacy product)

This high density 4U 60-bay JBOD expansion enclosure provides additional storage capacity and higher performance to your existing EonStor DS 4000 storage solution through 12Gb/s drive side SAS interface connections. When combined with the JB 3060, EonStor DS 4000 can support up to 444 drives, making a great choice for flexible scalability. Available in single or dual controller configurations, it features hot-swappable modular redundant 80 PLUS power supplies for ease of maintenance and high availability.

Please refer to the JB 3000 series datasheet.

This model is discontinued; the recommended offering is JBOD expansion enclosure.

Model

JB 3060

JB 3060 was discontinued (EOL), effective from July 31, 2020.

规格

4U 60 盘位

主机端口

12Gb/s SAS x 3

硬盘连接

12Gb/s SAS

可用性和稳定性

冗余、热插拔硬件模块

绿色环保设计

  • 80 PLUS 认证的电源,超过 80% 的利用率
  • 智能多档位硬盘降速

电源

  • 电源 : 冗余、热插拔 1600W x 2 (80 PLUS Platinum)
  • AC 电压 : 100-127VAC @12.47A,200-240VAC @9.6A
  • 频率 : 47-63 Hz

环境

  • 温度 :
    • 运行状态 : 0°C 到 40°C
    • 非运行状态 : -40°C 到 60°C
  • 海拔 :
    • 运行状态 : 海平面到 12,000 英尺
    • 非运行状态 : 海平面到 40,000 英尺
  • 相对湿度 : 5% 到 95% 无冷凝,运行与非运行状态下

尺寸 (W x H x D)

445 x 176 x 882 mm (无把手、凸出部分)

包装尺寸 (W x H x D)

620 x 460 x 1,140 mm

Weight (without HDDs)
114.64 lbs (52 kg)

“购买参考”使用户帮助从 Infortrend 销售代表那里报价。请注意,实际产品的订单和购买不经过 Infortrend 的网站。如果你希望订购和购买 Infortrend 的产品,请联系我们的销售代表。

请注意以下事项 :

  1. 下面的列表针对的是发货的全球标准,型号可能因地区而异。Infortrend 销售代表可以提供您所在区域发货变化的更多信息。
  2. “默认包含”表示系统订单中标准包含的组件。客户可以订购额外的组件作为备用。

Sorry, Couldn't find ordering Information of this model.
